Name: WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK8010-19
Price: 42.00 USD
Availability: InStock

خونه > محصولات > فرستنده سطح آب >

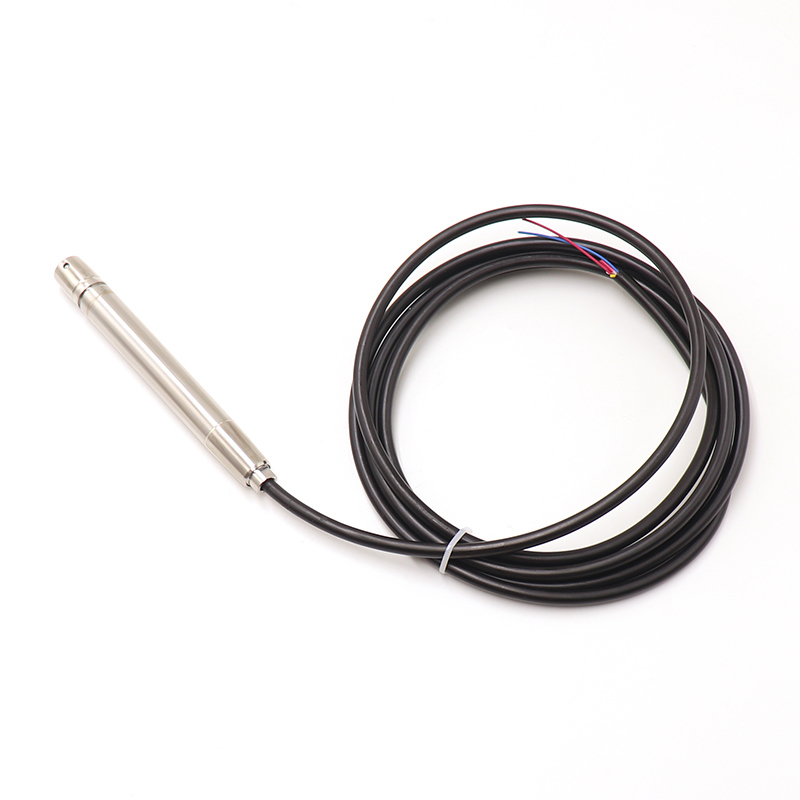

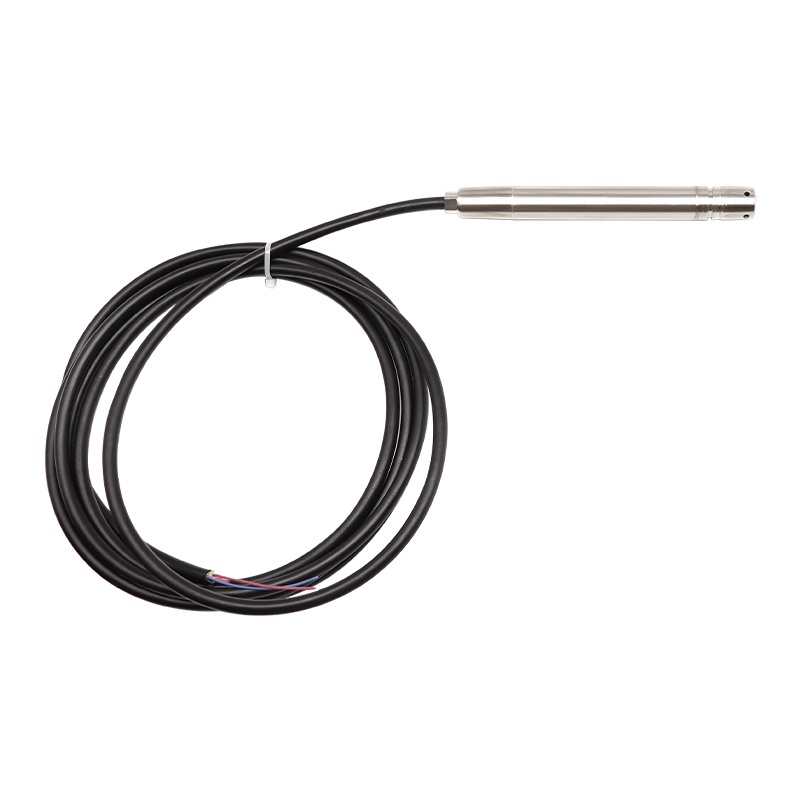

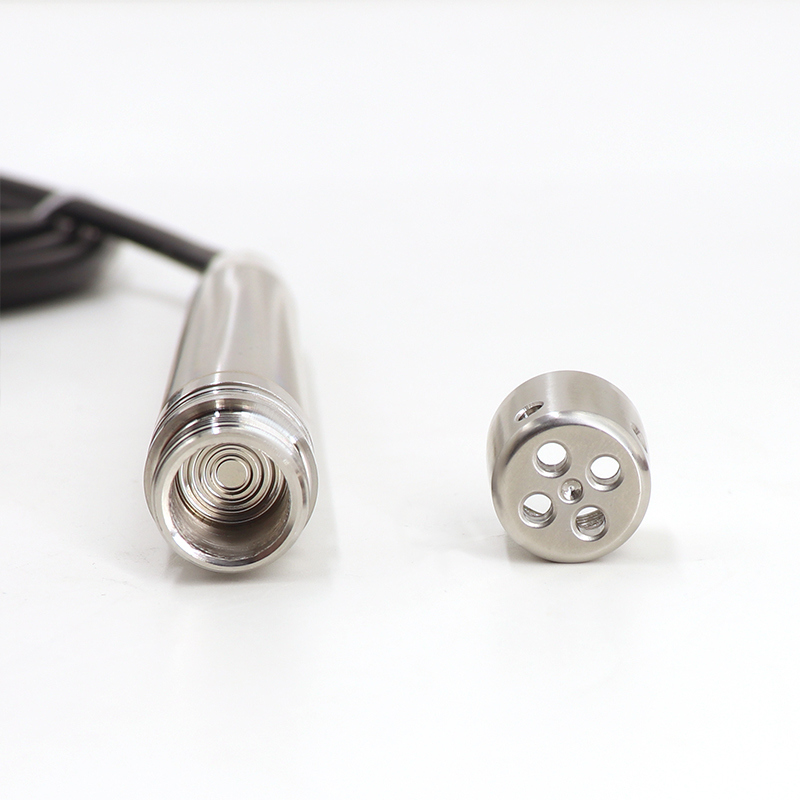

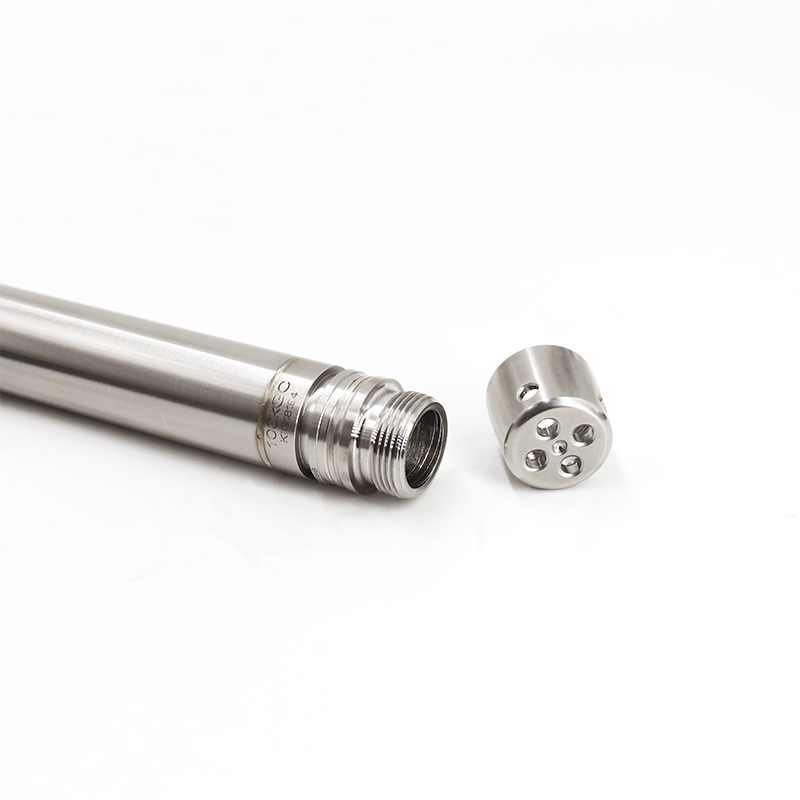

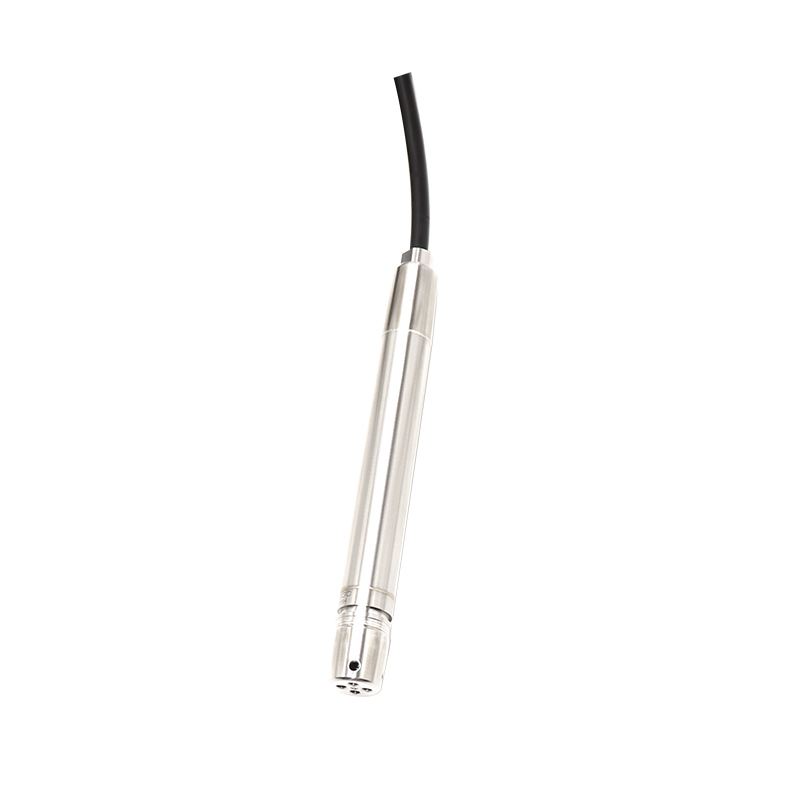

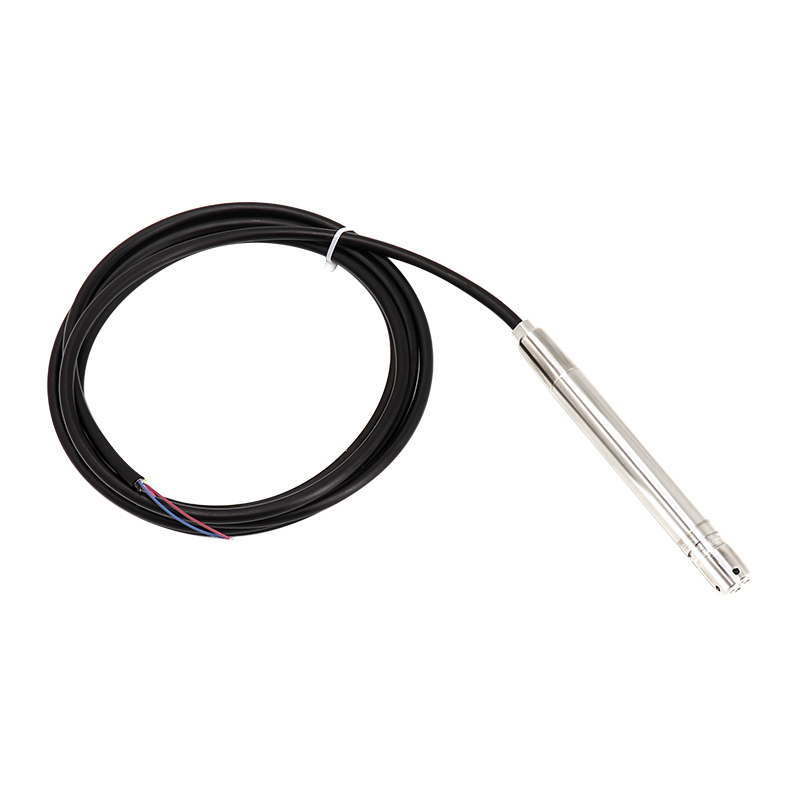

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

19mm submersible water level sensor,deep well water level transmitter,small diameter borehole sensor

deep well water level transmitter

small diameter borehole sensor

محل منبع:

آنهوی ، چین

نام تجاری:

WNK

شماره مدل:

WNK8010-19

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

ضمانت:

1 سال

پشتیبانی سفارشی:

OEM ، ODM

دامنه فشار::

0 ... 2 ~ 200 متر

خروجی:

4-20mA ، 0-5V ، 1-5V ، 0.5-4.5V ، 0-10V

دقت:

0.2 ٪ FS ، 0.5 ٪ FS ،

منبع تغذیه:

12~36Vdc

طبقه حفاظت:

IP68

کاربرد:

آب باران ، آب آشامیدنی ، فاضلاب ، فاضلاب ، آب دریا

مواد مسکن:

304SS ، 316L

دمای عملیاتی::

-40 ~ 85 ℃

نوع:

سنج

سرویس OEM:

OEM، ODM، سفارشی سازی در دسترس است

بندر:

شانگهای/ نینگبو

برجسته کردن:

19mm submersible water level sensor,deep well water level transmitter,small diameter borehole sensor

deep well water level transmitter

small diameter borehole sensor

شرایط پرداخت و حمل و نقل

مقدار حداقل تعداد سفارش

1 عدد

قیمت

$35.00 - $50.00/Pieces

جزئیات بسته بندی

هر کدام در یک کارتن جداگانه قرار می گیرند ، از کف محافظت می کنند. سپس به کارتن استاد

زمان تحویل

5-8 روز کاری

شرایط پرداخت

T/T ، Western Union ، MoneyGram ، PayPal

قابلیت ارائه

2000 قطعه/قطعه در هر ماه سنسور فشار

محصولات مرتبط

ویدیو

WNK ATEX Explosion Proof LCD Display Liquid Level Sensor With 4-20mA for Water Tank

بهترین قیمت رو بدست بیار

ویدیو

WNK Small Diameter 19mm Submersible Borehole Water Level Sensor for Deep Well

بهترین قیمت رو بدست بیار

ویدیو

WNK Submersible Hydrostatic Water Level Sensor Probe for River Tank Liquid Level Transmission Pressure Transmitter

بهترین قیمت رو بدست بیار

ویدیو

316L Stainless Steel 4-20mA RS485 1-10V Liquid Level Transmitter Submersible Water Diesel Fuel Tank Level Sensors

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

Product Description

Output	4-20mA, 0-5V, 1-5V, customization
Measured Range	0-0.5~200mH2O
Max overload	150% of sensor range
Pressure Type	Gage,Absolute
Accuracy	±0.2% FS/year
Long Term Stability	±0.25% FS/year
Housing Material	Stainless steel
Cable Material	Polyvinyl Fluoride, PTFE
Power supply	24V DC
Operating Temperature	-30~85℃
Compensation Temperature	-20~70℃
Protection Class	IP68

WNK8010-19 deep well water level sensor has high accuracy, small volume,stability,plus resistance to abrasion,oil,acid&alkali and high intensity gas lead cable ensured that it can meet the different occasions measurement requirements.

no-polarity two wire current output.

♦ It is widely used in well, standpipe, borewell, sewage, river and lakes treatment as well as channel, large rivers, l reservoirs and coastline monitoring.

♦ This product has got intrinsic safety certification,explosion proof certification and CE certification.

Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)

Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price

Size/Principle
