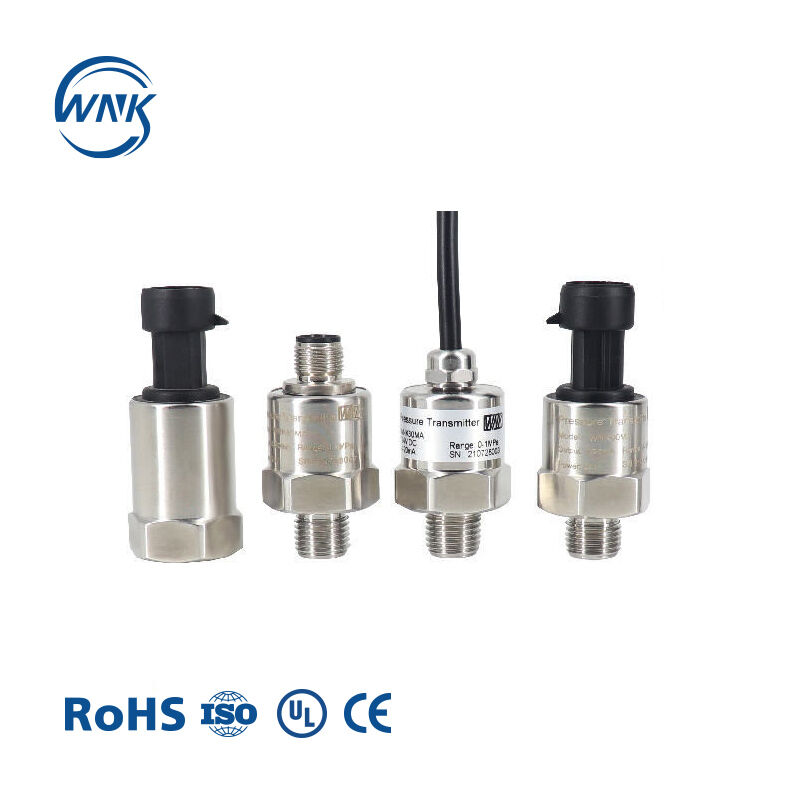

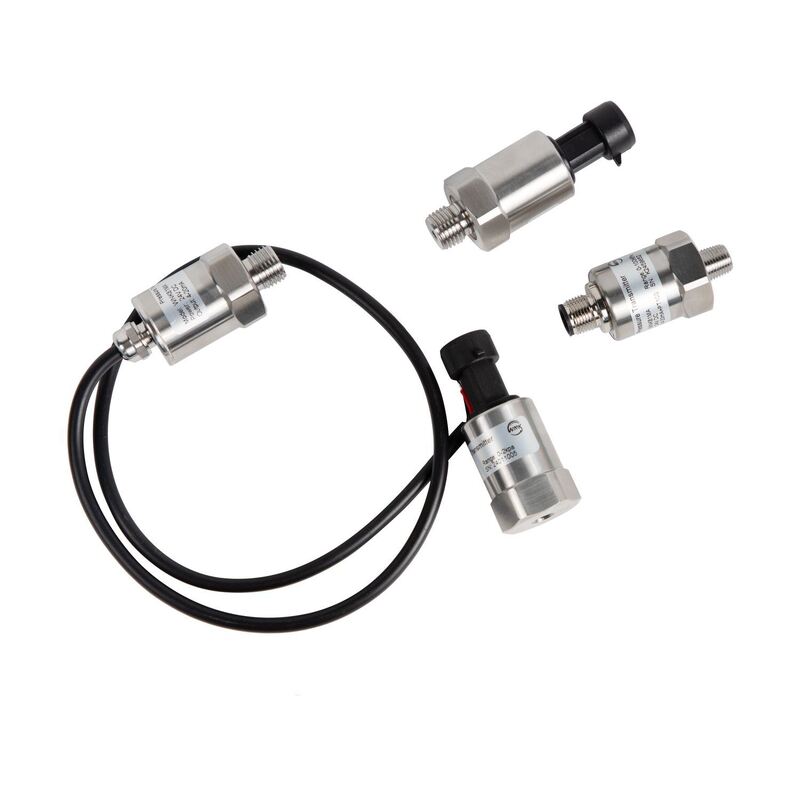

Name: WNK 0-5V 4~20mA 0.5% Gas Water Pressure Sensor OEM Explosion Proof Pressure Transmitter Transducer
Brand: Hefei WNK Smart Technology Co.,Ltd
SKU: WNK80MA
Availability: InStock

خونه > محصولات > سنسور فشار IOT >

WNK 0-5V 4~20mA 0.5% Gas Water Pressure Sensor OEM Explosion Proof Pressure Transmitter Transducer

0-5V gas pressure sensor with explosion proof,4-20mA water pressure transducer OEM,0.5% accuracy pressure transmitter for IoT

4-20mA water pressure transducer OEM

0.5% accuracy pressure transmitter for IoT

محل منبع:

چیان

نام تجاری:

WNK

گواهی:

CE/ROHS

شماره مدل:

WNK80MA

با ما تماس بگیرید

درخواست نقل قول

جزئیات محصول

رسانه های اندازه گیری شده:

آب ، هوا ، گاز ، بخار

مصالح مسکن:

304SS ، 316SS

دقت:

0.5 ٪ FS

محدوده فشار:

10kpa ، -100kpa ... 70mpa

برنامه های کاربردی:

مبرد هوای آب HVAC ، اتومبیل

سیگنال خروجی:

4-20ma ، 0.5-4.5 ولت ، 0--10V ، 3.3V ، I2C ، RS485

نوع فشار:

فشار سنج ، فشار مطلق ، فشار آب بندی

رتبه بندی IP:

IP65

برجسته کردن:

0-5V gas pressure sensor with explosion proof,4-20mA water pressure transducer OEM,0.5% accuracy pressure transmitter for IoT

4-20mA water pressure transducer OEM

0.5% accuracy pressure transmitter for IoT

شرایط پرداخت و حمل و نقل

محصولات مرتبط

ویدیو

سنسور فشار تهویه مطبوع WNK HVAC برای مبردهای R134a R404a R407c R410a R502 R507 با ولتاژ 0.5-4.5 ولت

بهترین قیمت رو بدست بیار

ویدیو

Universal Industrial 4-20mA 0-10V Pressure Sensor Transmitter Transducer برای گاز آب هوا

بهترین قیمت رو بدست بیار

ویدیو

حسگر فشار دقيق ترانسدوسر برای سیستم های تصفيه آب و آب رسانی

بهترین قیمت رو بدست بیار

ویدیو

WNK G1/4 1/8NPT Thread M12 Connector 100Psi تصفیه آب آشامیدنی کمپرسور هوا سنسور فشار انتقال دهنده

بهترین قیمت رو بدست بیار

با ما تماس بگیرید

حالا تماس بگیرید

توضیحات محصول

WNK Pressure Sensor 4-20ma 0.5-4.5V G1/4, 1/4NPT,1/8NPT

WNK has introduced the new robust, small size and programmable pressure sensors of WNK80MA & WNK811 series, suitable for domestic drinking water system, air-conditioning,machinery and refrigeration plant engineering, hydraulic and pneumatic systems, process industries and environmental technology.

WNK80MA and WNK811 have various outputs including 4~20mA, SPI, I²C, 0~5V, 0.5~4.5V and etc. And OEM, ODM & customization service are available for this product.

Product Description

Applicable media	Liquid, gas and steam
Pressure range	0-60Bar/ -1-700Bar
Cell	Ceramic capacitive pressure sensor
Pressure measurment	Gauge Pressure, absolute pressure and sealing pressure
Output	4-20mA/0.5-4.5V/1 -5V/0-5V/0-10V/I2C
Power supply	24VDC/12VDC/5VDC/3.3V
Accuracy(linearity,Hysteresis and Repeatability)	0.5%FS 1%F.S.
Compensation temperature	-20~85ºC
Ambient temperature	-40~125ºC
Working temperature	-40~125ºC
Temperature drift(zero)	±0.15% F.S. (-20~85ºC)
Temperature drift(full range)	±0.15% F.S. (-20~85ºC)
Electrical connection	Parkard, Cable outlet, M12, mini DIN43650
Mechanical connection	G1/4, 1/4NPT,1/8NPT, M12*1.5, 7/16-20UNF (female), customazation
Housing material	304 stainless steel(316SS for inner core)
Protection	IP65

Water Pressure Sensor for Air Gas

Product Application

What role does the sensor play in the air compressor?

The compressor (compressor), as the heart of the refrigeration system, is a driven fluid machine that lifts low-pressure gas into high-pressure gas. The low-temperature and low-pressure refrigerant gas sucked from the suction pipe is compressed by the rotation of the motor to discharge the high-temperature and high-pressure refrigerant gas to the exhaust pipe to provide power for the refrigeration cycle. Thus, a refrigeration cycle of compression → condensation (exotherm) → expansion → evaporation (heat absorption) is realized. The compressor is divided into piston compressor, screw compressor, centrifugal compressor, linear compressor and so on.

During the work, the actual responsibility of the compressor is to increase the pressure and increase the state of the suction pressure to the state of the exhaust pressure. Compression ratio is a technical expression of pressure difference, which means the absolute pressure on the high pressure side divided by the absolute pressure on the low pressure side. The compression ratio must be calculated using an absolute pressure value. In order to avoid making the calculated value of the compression ratio negative, the absolute pressure must be used instead of the gauge pressure when calculating the pressure ratio. It makes sense to use an absolute pressure value to make the compression ratio calculation a positive value.

Large central air conditioning, refrigeration equipment, in order to achieve automatic control of the machine, the lowest energy consumption ratio, the operation of the equipment needs to be fully monitored, such as temperature, refrigeration medium pressure.
The pressure sensor mainly measures the pressure of the refrigerating medium online on the refrigerating equipment, and transmits the pressure to the control system of the main machine in the form of electrical signals, so as to reflect the compression operation state of the equipment, to realize the automatic control of the product, and to reflect the consumption of the equipment as soon as possible.

WNK 0-5V 4~20mA 0.5% Gas Water Pressure Sensor OEM Explosion Proof Pressure Transmitter Transducer 5
