WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank

WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank

ATEX explosion proof water level sensor,submersible water tank level transmitter,underground water level sensor with warranty

submersible water tank level transmitter

underground water level sensor with warranty

محل منبع:

آنهویی، چین

نام تجاری:

WNK

شماره مدل:

WNK8010-TT

با ما تماس بگیرید
درخواست نقل قول
جزئیات محصول
گارانتی:
1 سال
پشتیبانی سفارشی:
OEM، ODM
محدوده فشار::
0...2~200 متر
خروجی:
4-20 میلی آمپر، 0-5 ولت، 1-5 ولت، 0.5-4.5 ولت، 0-10 ولت
دقت:
0.2% FS، 0.5% FS،
منبع تغذیه:
12~36VDC
کلاس حفاظت:
IP68
برنامه:
آب باران، آب آشامیدنی، فاضلاب، فاضلاب، آب دریا
مصالح مسکن:
304SS، 316L
دمای عملیاتی::
-40 ~ 85 ℃
تایپ کنید:
سنج
سرویس OEM:
OEM، ODM، سفارشی سازی در دسترس است
بندر:
شانگهای/نینگبو
برجسته کردن:

ATEX explosion proof water level sensor,submersible water tank level transmitter,underground water level sensor with warranty

,

submersible water tank level transmitter

,

underground water level sensor with warranty

شرایط پرداخت و حمل و نقل
مقدار حداقل تعداد سفارش
1 عدد
جزئیات بسته بندی
هر مجموعه در یک کارتن جداگانه، محافظت با فوم. سپس در کارتن اصلی
زمان تحویل
5-8 روز کاری
شرایط پرداخت
T/T، Western Union، MoneyGram، Paypal
قابلیت ارائه
سنسور فشار سطح 2000 قطعه/قطعه در ماه
محصولات مرتبط
با ما تماس بگیرید
حالا تماس بگیرید
توضیحات محصول





Underground Water Tank Level Sensor





Hefei Wnk Smart Technology Co., Ltd. is a professional high-tech enterprise specializing in the R&D, production, sales, and service of various advanced and reliable sensors and transmitters. We are committed to providing users with sensor, transmitter, and product technology solutions tailored to different application needs in different fields. Since its establishment in 2004, WNK has provided reliable products and comprehensive services to customers from over 160 countries worldwide. The goal of WNK is to enable more customers to obtain better products and services at lower prices.

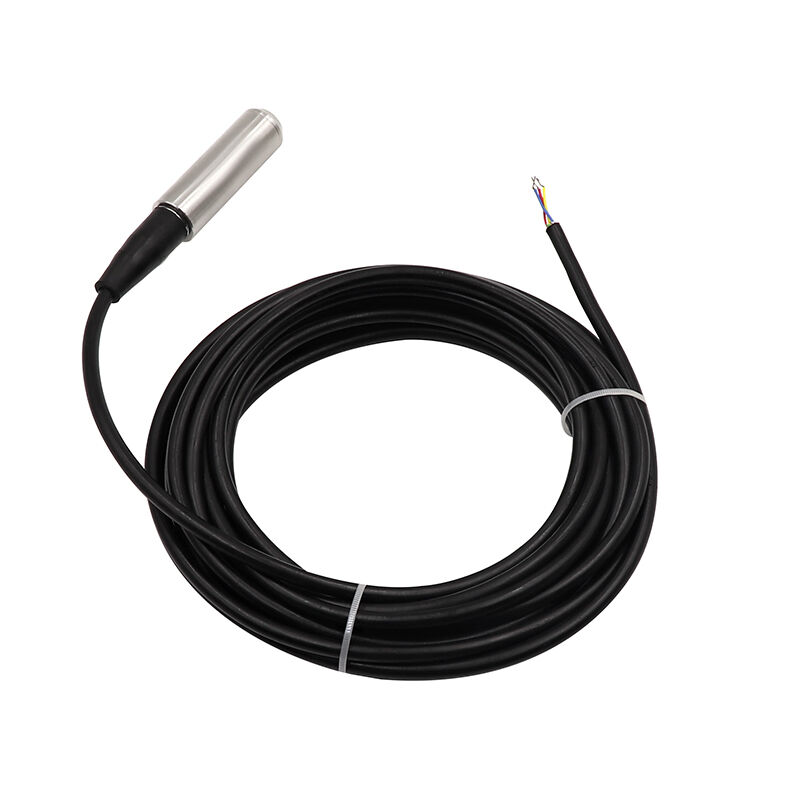

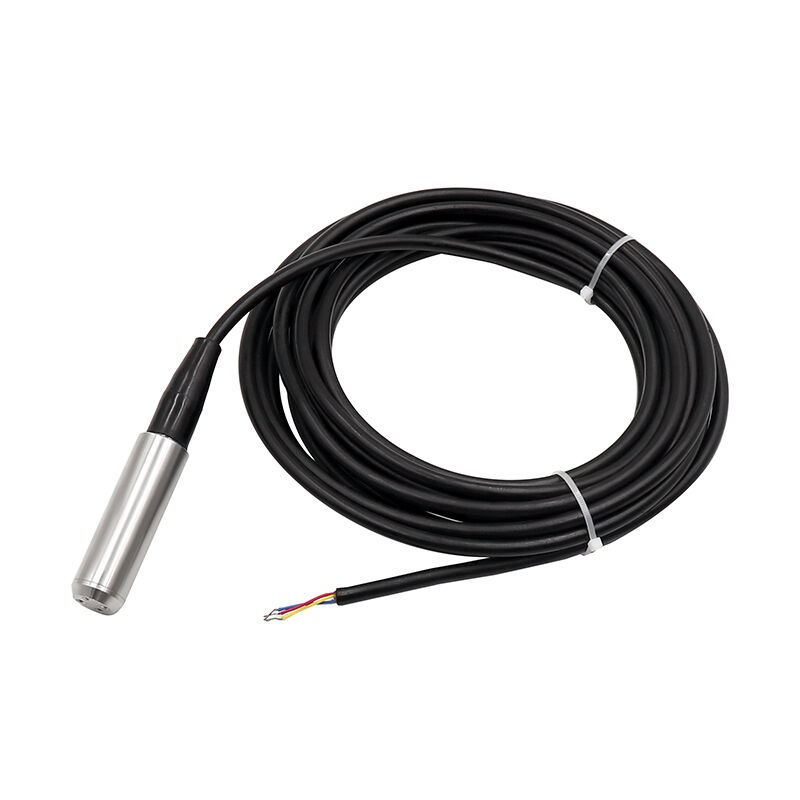

WNK8010 is a high cost effective submersible level sensor suitable for liquid level or pressure and depth measurement. Made of ss304 or ss 316 housing, it can be applied to measurement in most industrial liquids and oils. Each submersible pressure transducer features a removable nose cone at the sensor which protects the diaphragm from damage. It has high stability up to 0.25%FS/Year with high protection of IP68.


Applications

• Water tank level measurement and control.
• Fuel tank level measurement and monitor (diesel, gasoline, kerosene and so on).
• Liquid level measuring in tank, rivers, lake, sea, well, tube, underground water and so on.
• Special occasion such as high temperature liquid (up to 100 degree C), strongly corrosion liquid level measurement (request by customized.)
Features
• Adopting diffusion silicon oil-filled sensor
• Max measure range up to 200 meters or more
• High Stability, provide 0.1, 0.2, 0.5 accuracy for option
• Factory direct price







Dimensions - IP68 Sumbersible Liquid Level Sensor


WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 0
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 1
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 2
Product Show
WNK ATEX Explosion Proof Submersible Level Sensor for Underground Water Tank 3
